Moda Cubicle System

  • Home
  • Cubicle System

Job References

  • MANULIFE FINANCE CENTER KWUN TUNG
  • HONG KONG SCIENCE PARK BUILDING 6W

Satin Matt Black

Share

Hardware Details

MetlamHK
MetlamHK

Moda Lock and Indicator - Designer Black

    Indicator
  • Material : Diecast Zinc, Alloy ZP3
  • Finish : Satin Matte Black
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features : A large eyelet allows for a clearer view of the vacant/engaged signal
    • Easy-Glide Slide Lock
  • Material : Diecast Zinc, Alloy ZP3
  • ABS Snap On Cover Plate
  • Finish : Satin Matte Black
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features ：Solid one-piece diecast handle. A Unique "Easy-Glide" Slide Lock for restricted hand mobility, limb loss, and hyeiene protection
  • Raised directional arrows to assist those with vision impairment
  • Deemed to satisfy Disability Standard AS1428.1 for ambulant cubicle specification only.
    • Staple
  • Material ： Diecast Zinc, Alloy ZP3
  • ABS Snap On Cover
  • Finish : Satin Matte Black
  • Mounting : Concealed Screw Fix Surface Mounted
  • Features : Functional modern design
Details
MetlamHK
MetlamHK

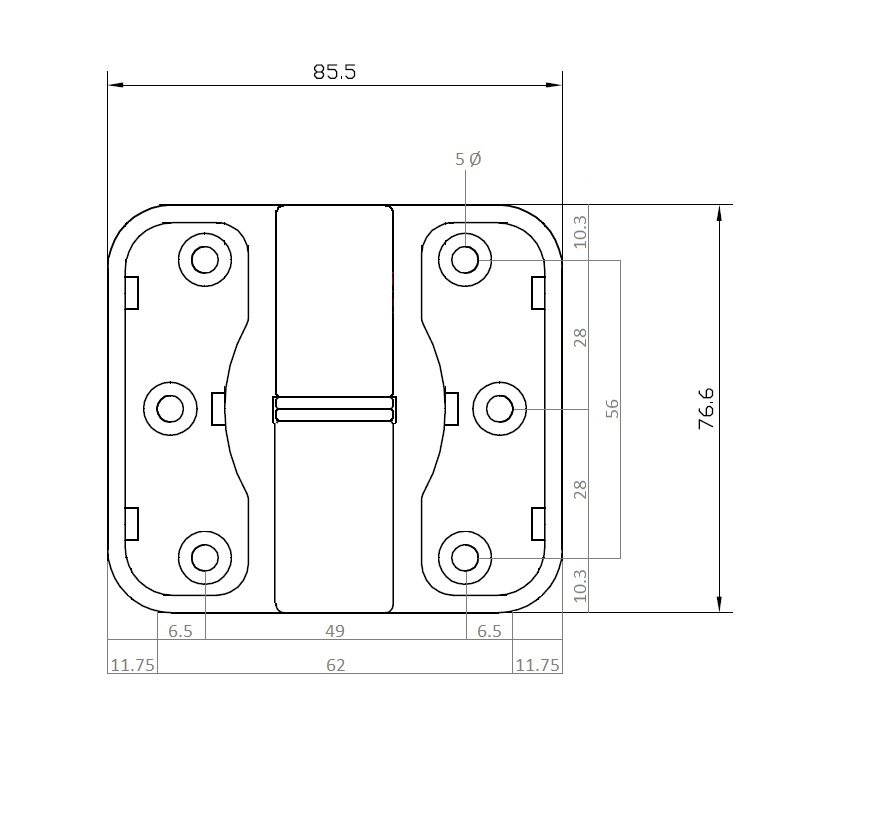

Moda Spring Hinge - Designer Black

    Material
  • Diecast Zinc, Alloy ZP3
  • Brass Shaft
  • Nylon Inserts, ABS Snap On Covers
    • Finish
  • DESIGNER_MODA: Satin Matte Black (Shown)
  • MODA_SCP: Satin Chrome Plate
  • MODA_SPP: Satin Pearl Plate
  • ANMB_MODA: Antimicrobial Coating
    • Mounting/Specify
  • Concealed Screw Fix RH or LH
    • Features
  • Spring assisted door opening/door closing
  • Fully AdjustableSpring to suit door - No Tension to Full Tension Spring
  • Reversible Hold Open / Hold Closed
  • Lift off capability
    • Load Rating
  • 15Kg per hinge
  • For optimum performance
  • 2 hinges per door up to 30 Kgs
  • For doors over 30Kg allow for 15 Kg per hinge
Details
MetlamHK
MetlamHK

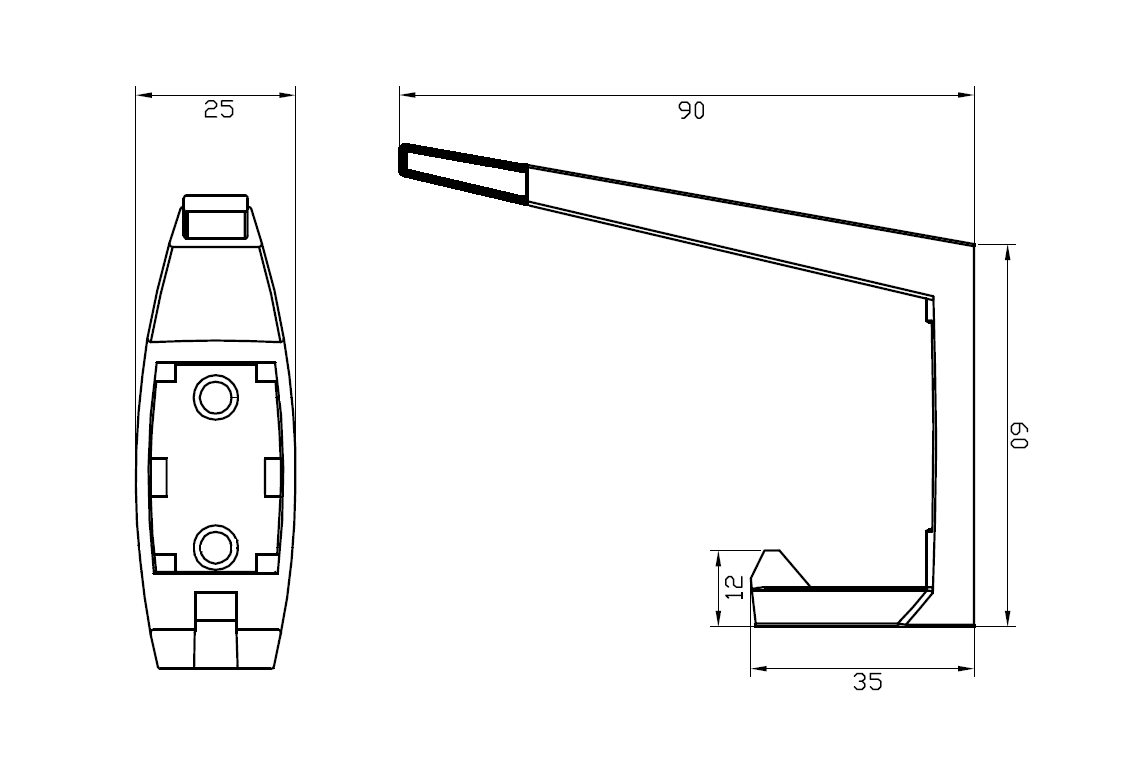

Moda Hat & Coat Hook - Designer Black

    Material
  • Diecast Zinc, Alloy ZP3
  • Rubber Bumper
    • Finish
  • DESIGNER_MODAHOOK: Satin Matte Black (Shown)
  • MODA_HOOK_SCP: Satin Chrome Plate
  • MODA_HOOK_SPP: Satin Pearl Plate
  • ANMB_MODAHOOK: Antimicrobial Coating
    • Mounting
  • Concealed Screw Fix
    • Dimensions
  • Height: 60mm x Width: 25mm x Projection: 90mm
  • Refer to line drawings for more information.
    • Note
  • * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
Details
MetlamHK
MetlamHK

Designer Heavy Duty Aluminium Leg

    Material
  • Aluminium, Nylon Base
    • Finish
  • Anodised Satin Black
    • Features
  • Off Floor System
    • Specify
  • DESIGNER_120ALUM_100
  • 100mm min - 110mm max height with 10mm adjustment
  • DESIGNER_120ALUM_150
  • 135mm min - 165mm max height with 30mm adjustment
  • DESIGNER_120ALUM_165
  • 165mm min - 200mm max height with 35mm adjustment
  • DESIGNER_120ALUM_200
  • 185mm min - 225mm max height with 40mm adjustment
Details
MetlamHK
MetlamHK

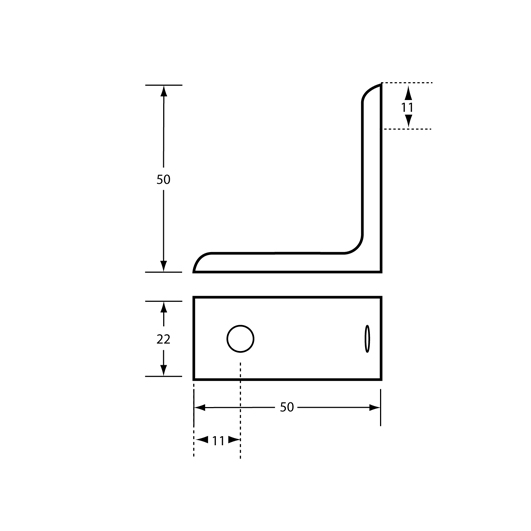

ML121_6MMCSK_GRAPHITE Angle Bracket

    Material
  • Anodised Aluminum
    • Finish
  • Graphite
    • Screw Holes
  • Countersunk (CSK)
    • Features
  • 6mmØ hole
    • Note
  • Representational image only
Details

Formica® Panel Materials

Material:

Formica Protec+ Silver (Ag+) antimicrobial Compact Grade laminate, 12mm thick, blackcore, decopaper on double sides in matte or naturelle finish (other finishes are available as request)

International Standard & Certifications:

Greenguard Gold Certification; Greenguard Certification; BS EN-438-2016; ISO9001; ISO14001; Carbon Reduction Label; BS476 Part 6 and 7; Antifungal ASTM G21 : 2013 test report , with 0 (None); Antibacterial JIS Z2801 : 2012 prevent growth of bacterial up to 99.9% within 24 hours.

Recommended Dimensions:

800-900mm (W) x 1500-1800mm (D) x 2100mm (H)
